Designed and Printed an End Cap for Workout Equipment using Fusion 360

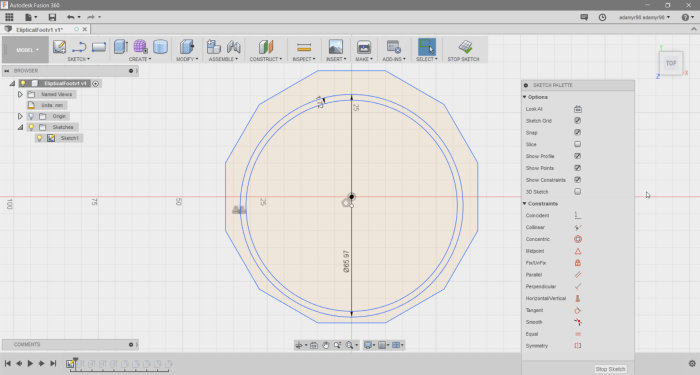

I was tasked with duplicating an end cap for some workout equipment, there was a copy of what was needed, I just need to to measure it and draw it up in Fusion 360.

Fusion360_2017-06-28_19-09-20

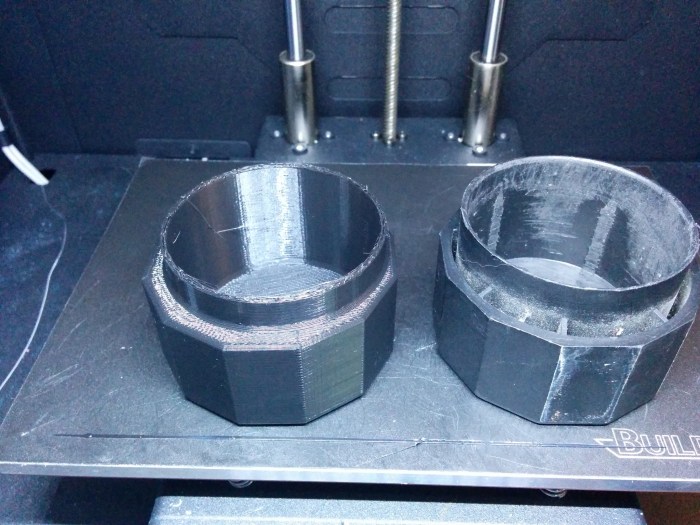

The Result



5228866079510485263-account_id=1

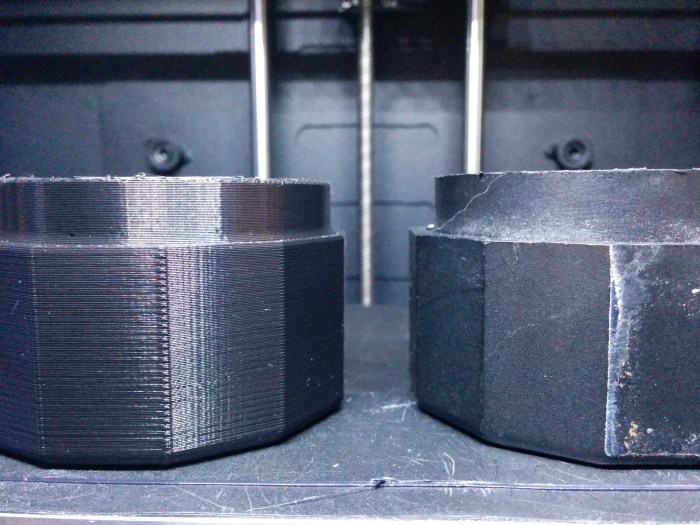

Everything went well…. except that I ran out of black PLA filament 2 mm away from the end of the print. It doesn’t matter though the hole is long enough to support the post.

5989758356433439111-account_id=1
